Description
Specification
| Rim | |
| Series | Velo |
| Wheel Size | 700c |
| Tire Compatibility | Clincher & Tubeless (Hooked) |

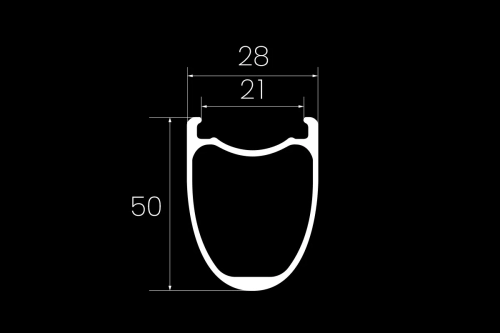

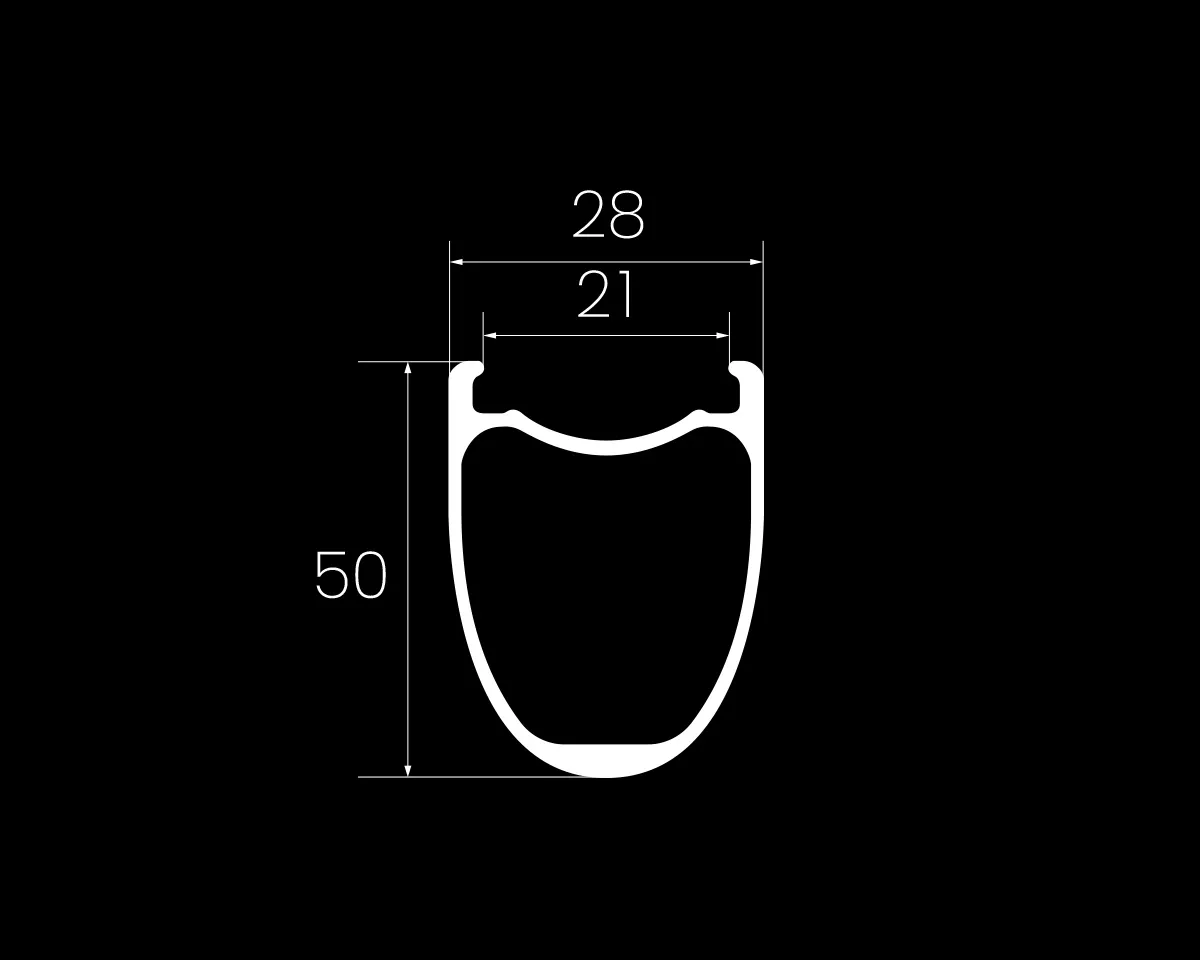

| Rim Depth | 50mm |
| Inner Width | 21mm |
| Outer Width | 28mm |
| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | S&S Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | 50T Ratchet |
| Freehub Compatibility | Shimano HG/Sram XDR |
Other
| Rim Finish | Glossy Raw Carbon |
| Weight (Pair) | 1605±50g (without tubeless valves and rim tape) |
| Weight (Front) | 750±30g |
| Weight (Rear) | 855±30g |
| Extras | Tubeless Valves(Installed) |
| Rider Weight Limit | 280lbs/125kg | Compatible Tire Sizes | 700 x 25-43C |
| Recommended Tire Sizes | 700 x 28-30C |
Elitewheels is a big proponent of marginal gains and knows that many small improvements can add up. The Velo Six II features a 21mm internal rim width improving rolling resistance when compatible with wider tires, which have the added benefit of improved comfort on less than optimal road surfaces as well as increasing grip in wet conditions.
To push performance even further, the rim’s cross-sectional profile has been newly redesigned to significantly boost lateral stiffness. Advanced carbon fiber layering techniques enhance rigidity without adding weight, even with a larger cross-section. In addition, the use of complex surface curvatures and refined contouring dramatically improves overall stiffness. The Velo Six II now delivers greater impact resistance, making it not only faster but tougher than ever.

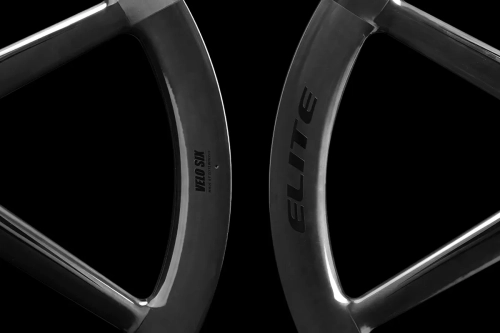

The Velo Six II features Glossy Raw Finish which is created by putting a clearcoat over the rim without additional finish. This allows for you to see the actual UD carbon layup. Any small imperfections that are covered up by traditional Matte, Glossy, 3K, or 12k finish, are made visible. These cosmetic imperfections exist on all carbon wheels regardless of the finish and have no impact on performance or durability.

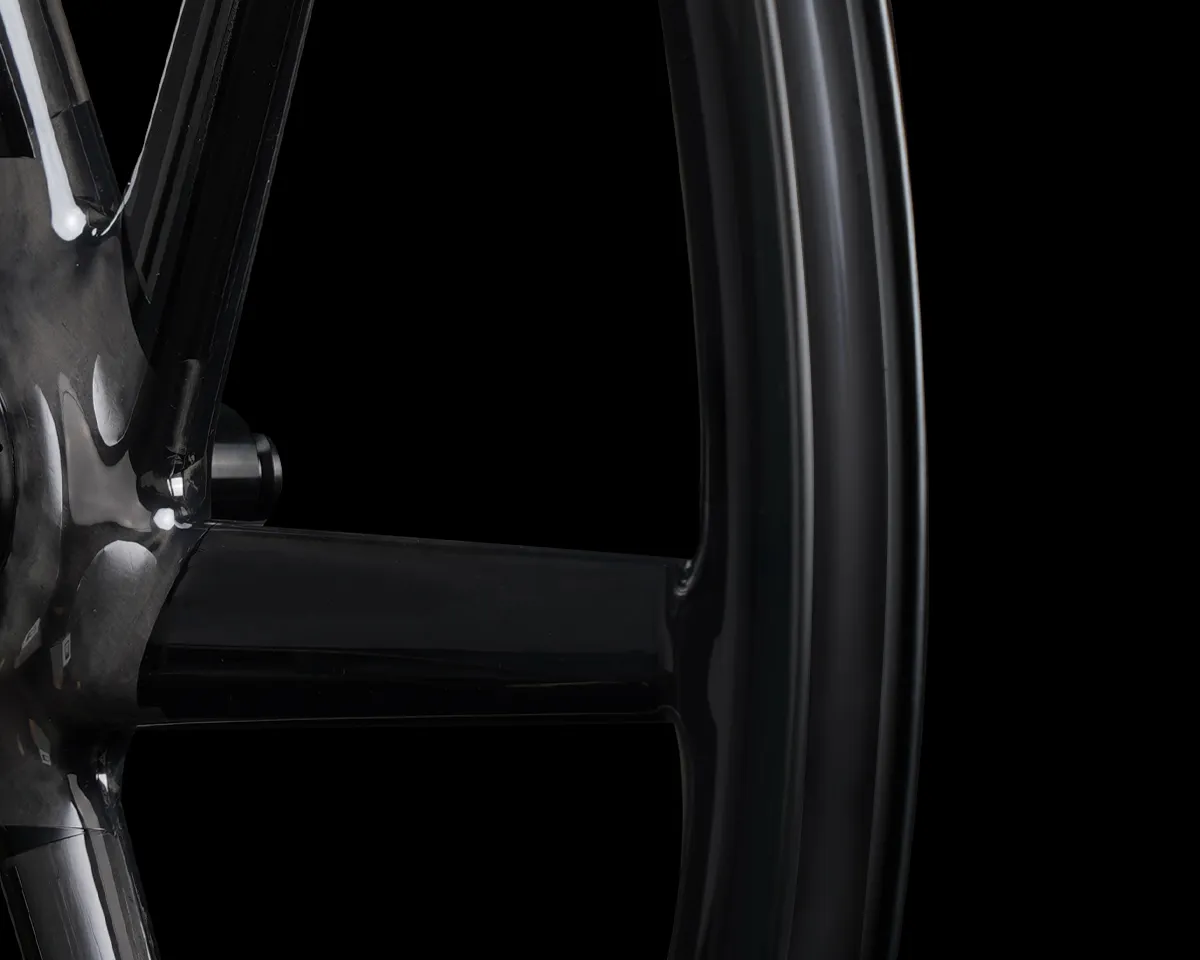

SPOKES
What separates this wheelset from the pack is the shape of the spokes. While there are other one piece road wheels available, not all of the spokes are designed with aerodynamics in mind. Our engineers have optimized the wheelset to minimize the coefficient of drag through by reducing the spokes’ frontal area and mimicking the ideal teardrop shape.
The connection between the spokes and the rim has also been refined, ensuring a smoother structural transition. These mechanical improvements result in more efficient and seamless power transfer across the wheelset.

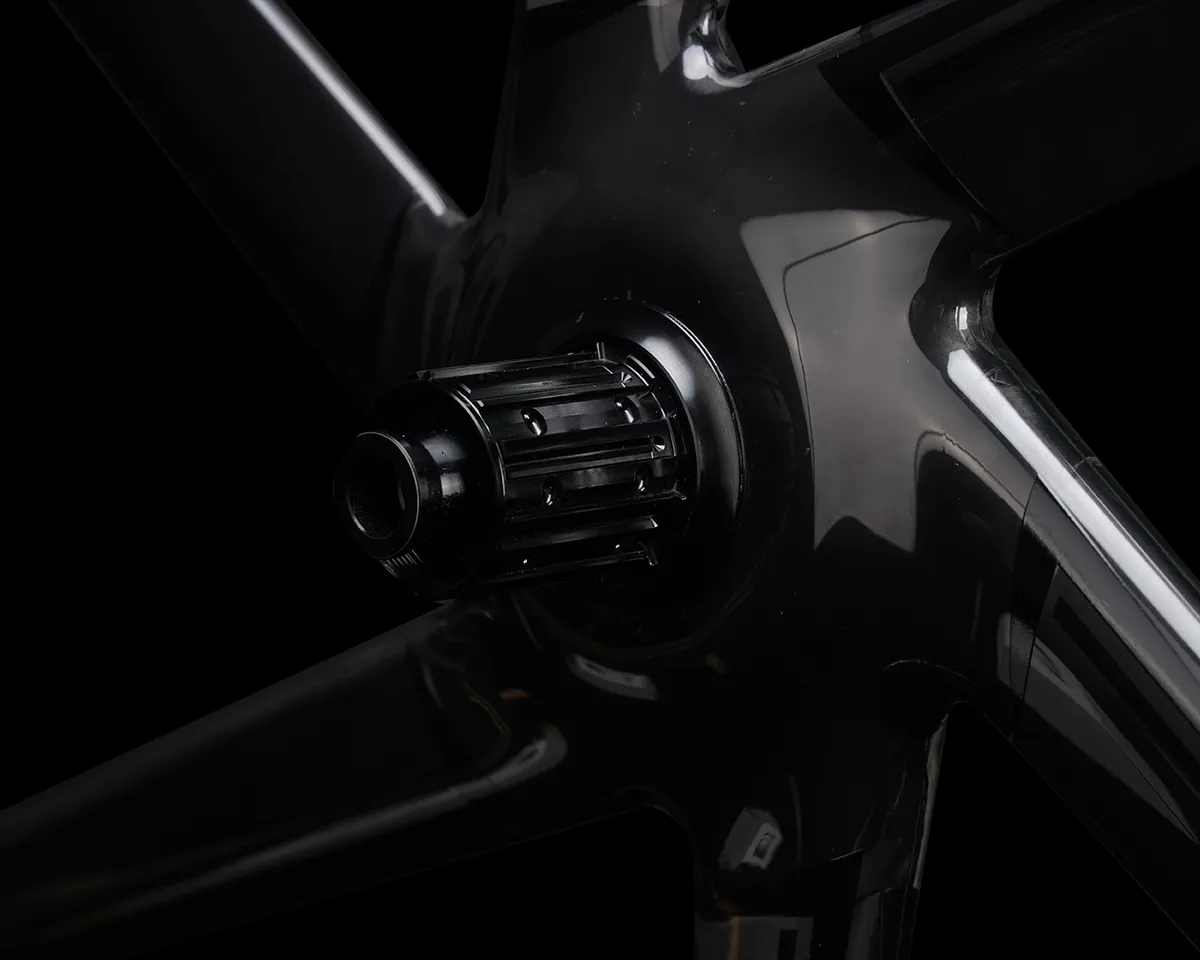

PERFORMANCE HUB
Elitewheels designs and manufactures its own hubs. The front and rear hubs are made of 7075 aluminum which is known for it’s high strength.
Through advanced CAE (Computer-Aided Engineering) analysis, the unique structural characteristics of the rim were identified. This led to a comprehensive hub redesign to better align with the system’s load distribution.
The hub features a 50T ratchet system with a 7.2°engagement angle for quicker response. Unlike traditional flat ratchets, the specially angled tooth surfaces allow automatic alignment, increasing engagement area and improving both stability and reliability. Additionally, the tapered design reduces stress on the ratchet’s tooth surface, minimizing wear and extending the hub’s service life.

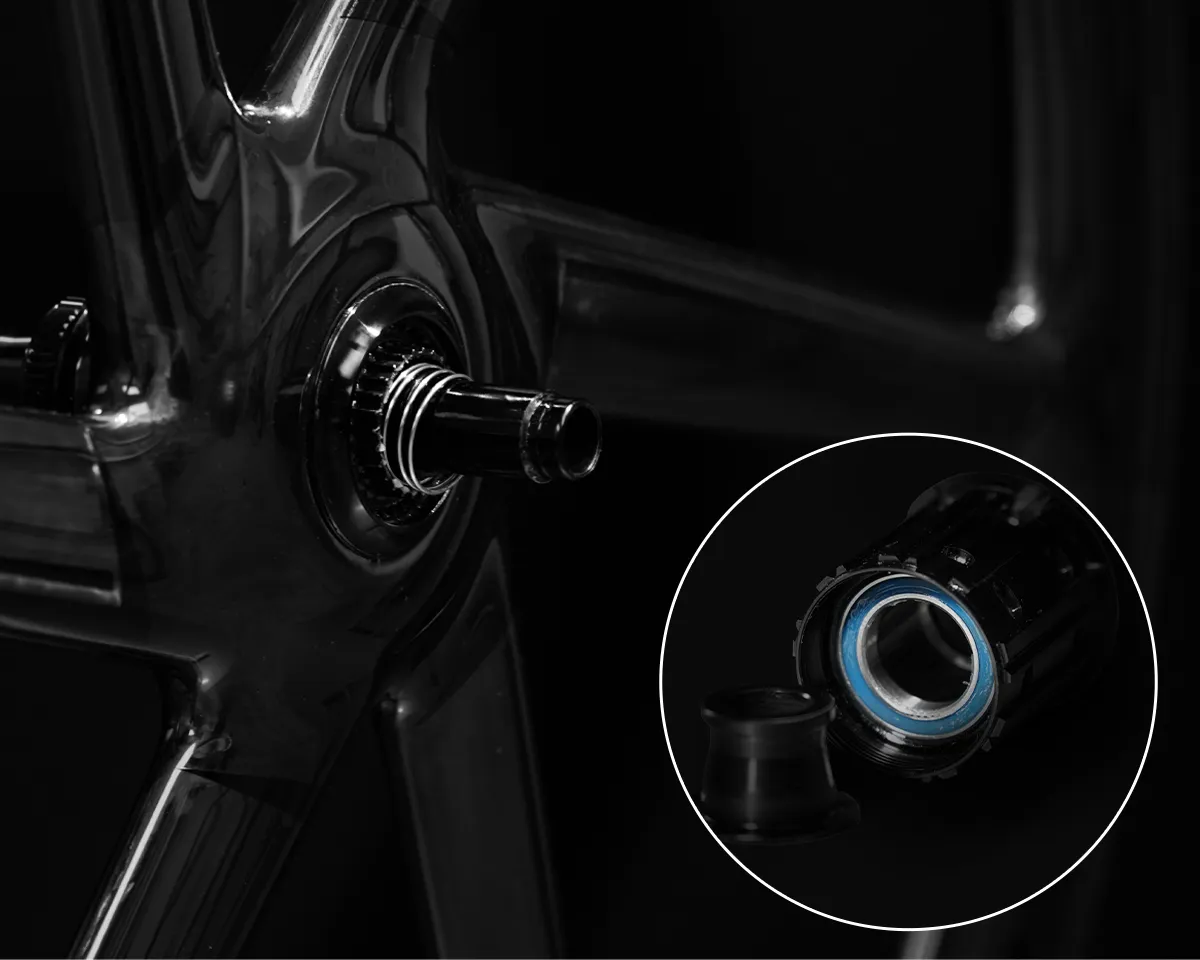

CERAMIC BEARINGS
The S&S ceramic bearings in the Velo Six II were specifically chosen for their low rolling resistance and excellent durability. Using Fanuc CNC machines, our hubs are machined to a tolerance of 0.02mm. This precision is especially important for ceramic bearings to minimize rolling resistance and increase longevity.
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
